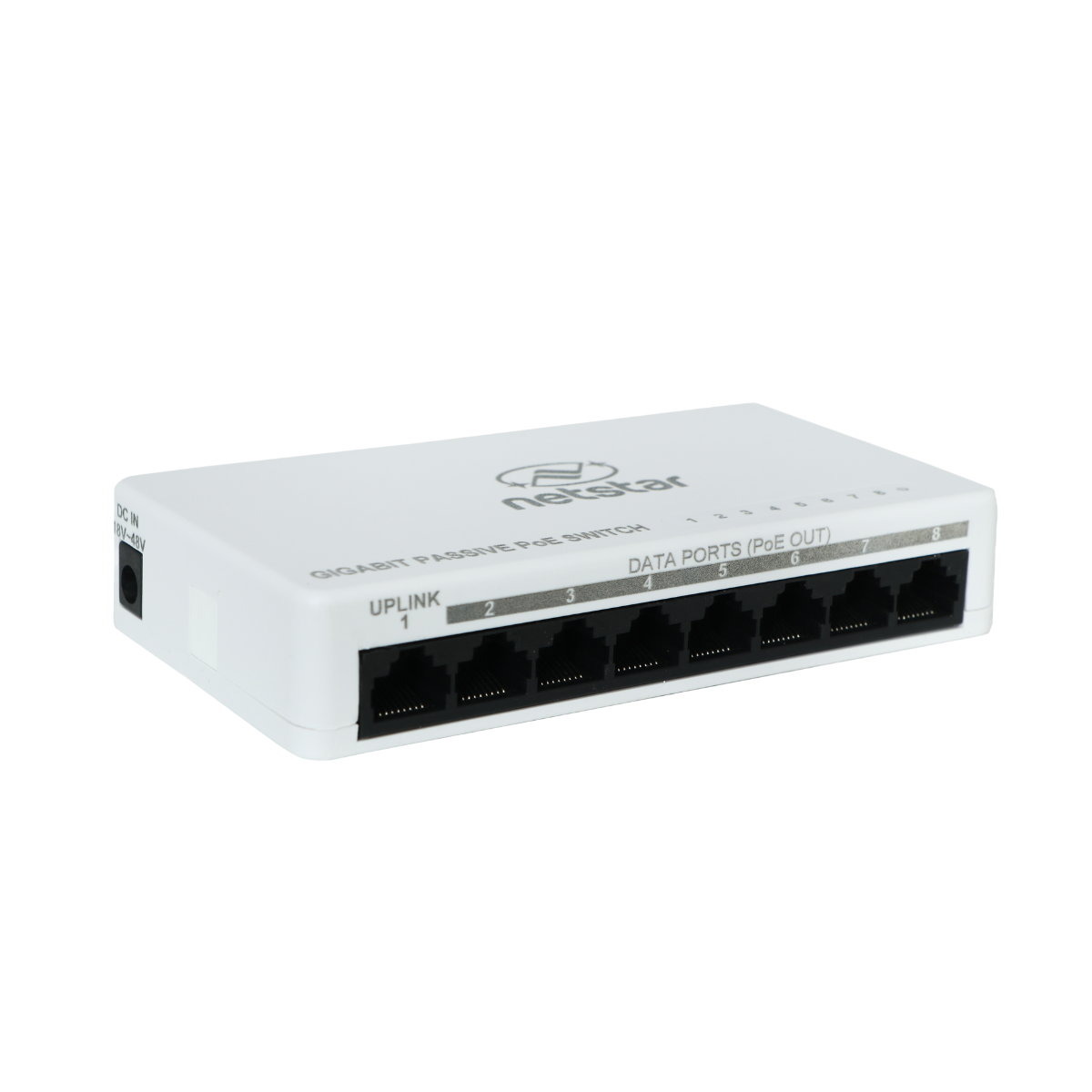

8 Port Gigabit Passive PoE Switch
NS-8G-P24-120
7 x 10/100/1000Mbps Data + PoE Out Ports
1 x 10/100/1000Mbps Data Uplink Port
- Description
- TECHNICAL SPECIFICATIONS
Description

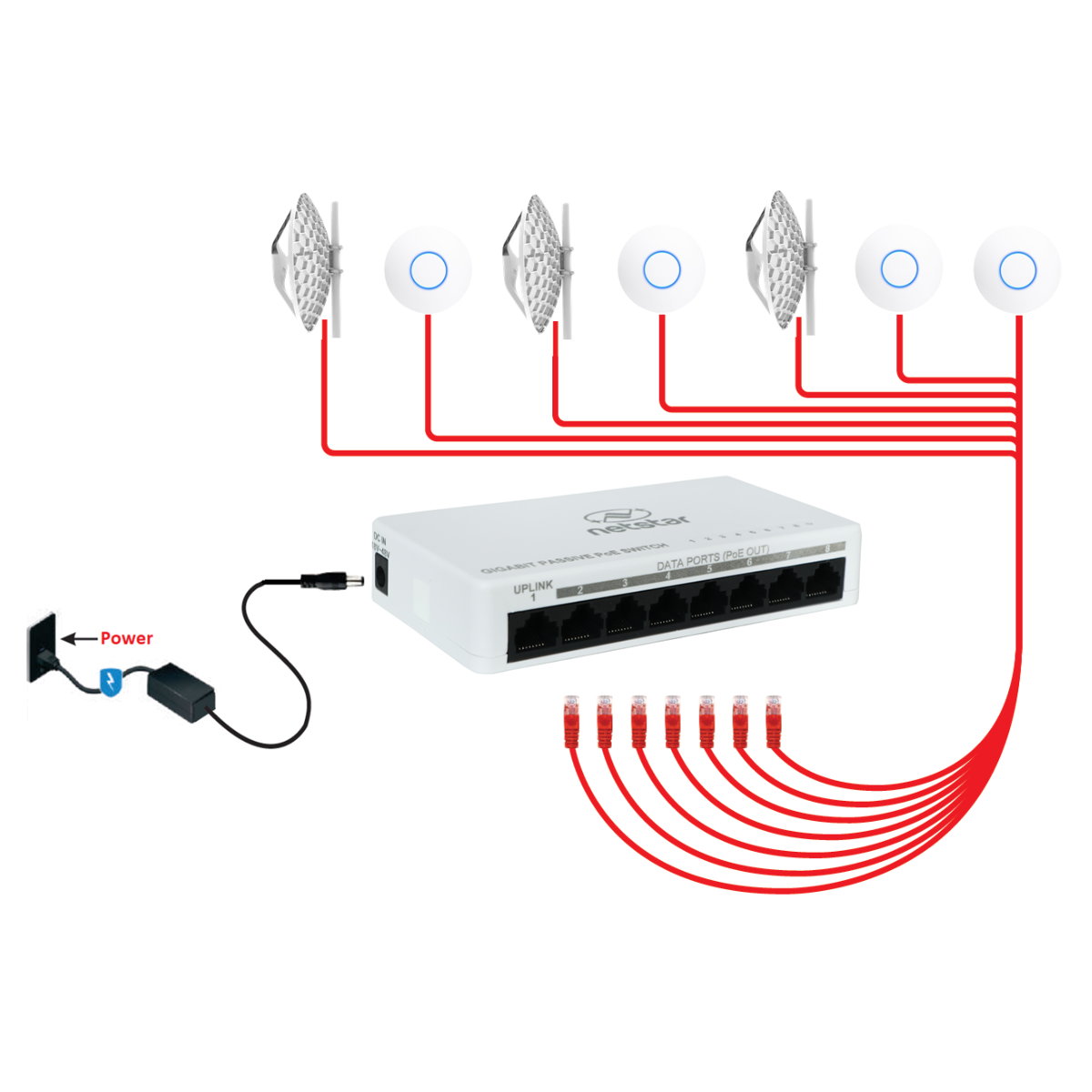

Can’t find a PoE switch for your Passive PoE equipped Aps? Can’t get 100 meter of cabling distance? The NS-8G-P24-90/120 is about to change everything. It is the industry’s first 24V Passive PoE switch with full power supply. It consists of 7 Gigabit PoE Out Ports & 1 Gigabit Data Uplink Port. The 7 Gigabit RJ-45 Ports are built with 24VDC Passive PoE technology and data transmission over a single Ethernet cable, it is the ideal distribution switch for wireless solution. With the Passive PoE function, the NS-8G-P24-90/120 can power 24VDC Passive PoE CPEs or APs without additional power adapter. For wireless Hotspot or WISP system, NS-8G-P24-90/120 helps the installer not only to establish the network easier, but to design the network more flexible and secure.
| Ethernet Connector | RJ45 Jacks - 8 x Gigabit Ports |
| PoE Out Port | 7 x Gigabit 24VDC PoE Out Ports(Port 2 to 8) |
| Data Port | 1 x Gigabit Data Uplink Port (Port 1) |
| Ethernet Cable Data Line | Pin 1,2, Pin 3,6, Pin 4,5, Pin 7,8 |
| Ethernet Cable Power Line | +VDC : Pins 4,5, & -VDC : Pins 7,8 |
| Technology Standard | IEEE Std. 802.3 10BASE-T IEEE Std. 802.3u 100BASE-TX IEEE Std. 802.3x Flow control and Back-pressure. IEEE Std. 802.3az Energy Efficient Ethernet IEEE 802.3ab 1000Base-T |
| LED Indicator | Green : ON - Device On Stable Yellow : ON - Gigabit Link Activate Yellow : Flashing - Gigabit Data Transmission Red : ON - 10/100Mbps Link Activate Red : Flashing - 10/100Mbps Data Transmission |
| Transmission Method | Store and Forward |
| MAC Address | 4K MAC address |
| Operating Temperature | Operation: 0°C ~ 60°C, Store: -20°C ~ 80°C |
| Operating Humidity | 20% to 95% (non-condensing) |
| Power Supply | NS-8G-P24-90 : 24V @ 4Amp Adapter NS-8G-P24-120 : 24V @ 5Amp Adapter |
| Dimensions | 130 x 70 x 25 mm |
| Weight of Switch | 0.15Kg |
You may also like…

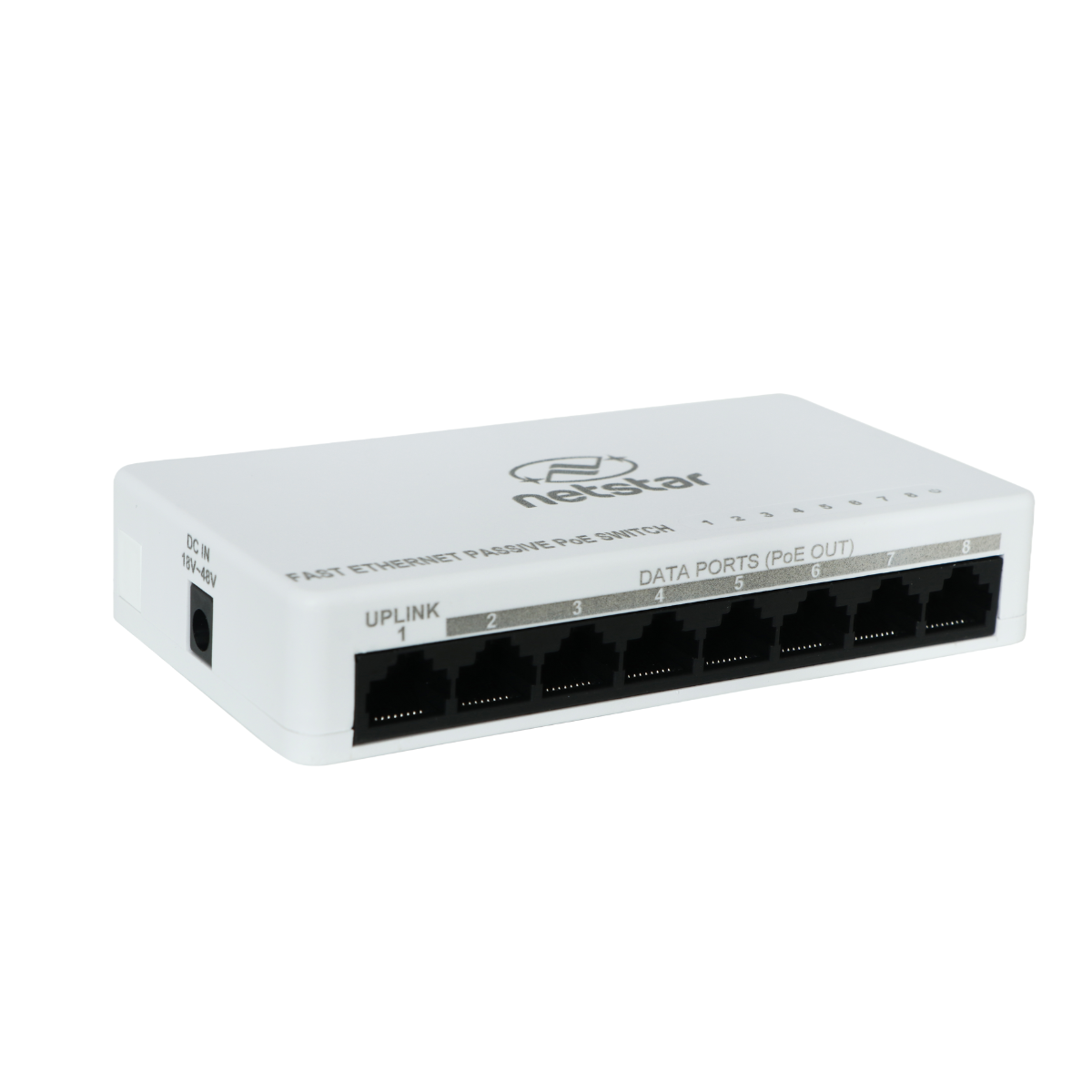

8 Port Fast Ethernet Passive PoE Switch
