Description

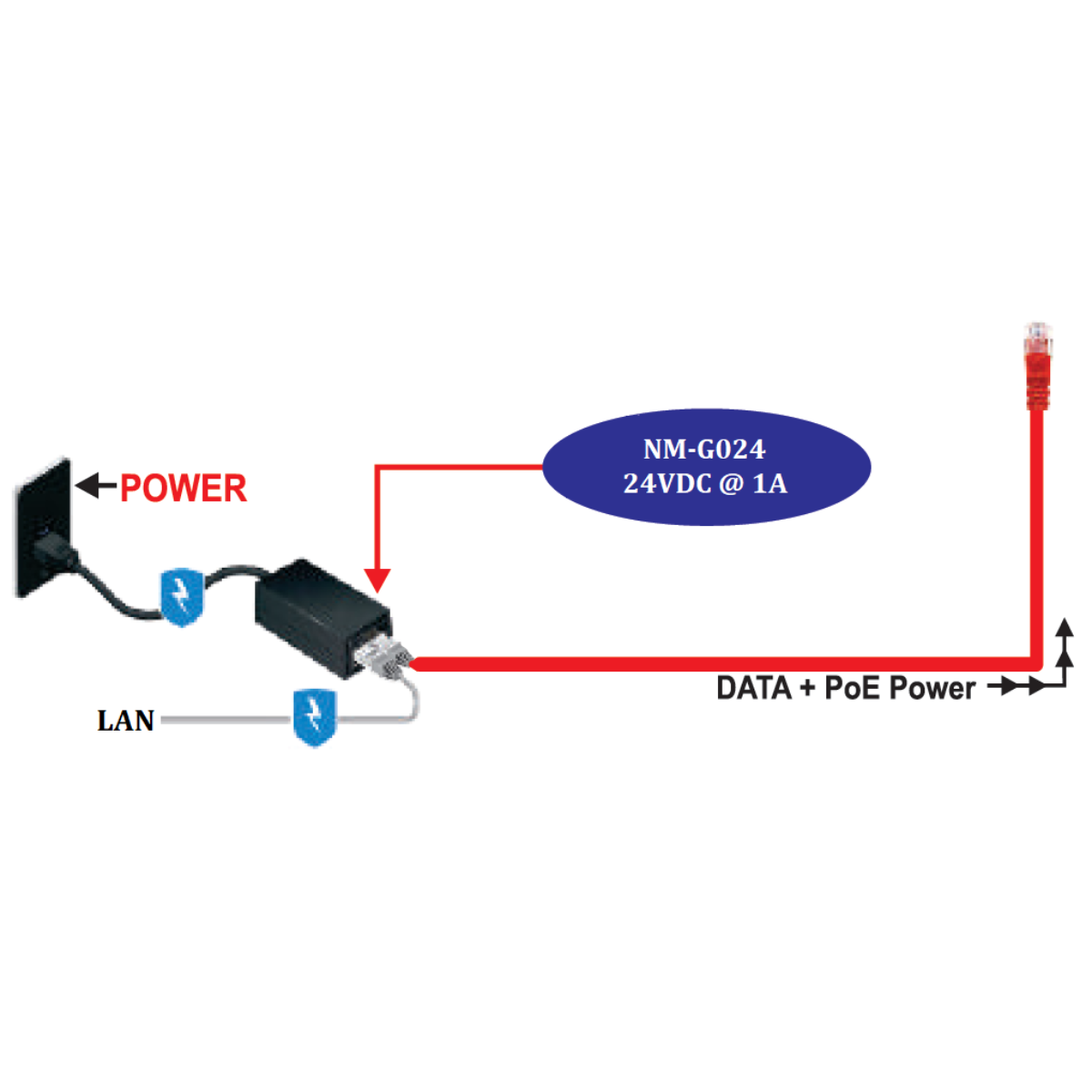

NETSTAR Passive PoE Injector is used to power variety of NETSTAR Reverse PoE Switches and other Passive Wireless CPE / PoE enabled devices (24VDC, 1A). NETSTAR PoE Injectors provide variety of features like Surge Protection, Overload & Short Circuit Protection.
| Ethernet Connector | 2 x Gigabit Metallic RJ45 Ports |
| Input Voltage | 100-240VAC @ 50/60Hz |
| Output Voltage | 24VDC @ 1A (24Watt) |
| Network Cable | 4-pair UTP Cat 5 / Cat 6 cable |
| LED | Power : On/Off for PoE Injector |
| Power Cord | By default : Indian Type 3 Pin Power Cord *Also available with all type of Power cords |
| Ethernet Cable Data Line | All 4 Pair : Pin 1, 2, Pin 3, 6, Pin 4, 5 & Pin 7, 8 |
| Ethernet Cable Power Line | +VDC : Pin 4, 5 & -VDC : Pin 7, 8 |
| Operating Temperature | Operation: 0°C ~ 60°C |
| Storage Environment | -20°C ~ 80°C |
| Operating Humidity | 20% to 95% (non-condensing) |
| Dimensions | 50 x 110 x 35 mm |
| Weight of Switch | 0.23Kg |
